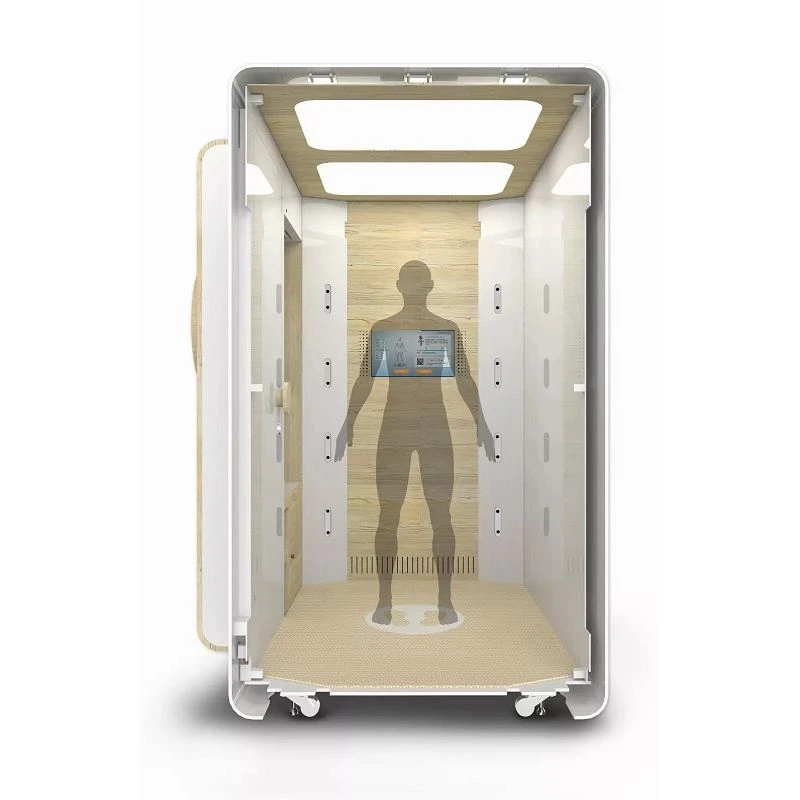

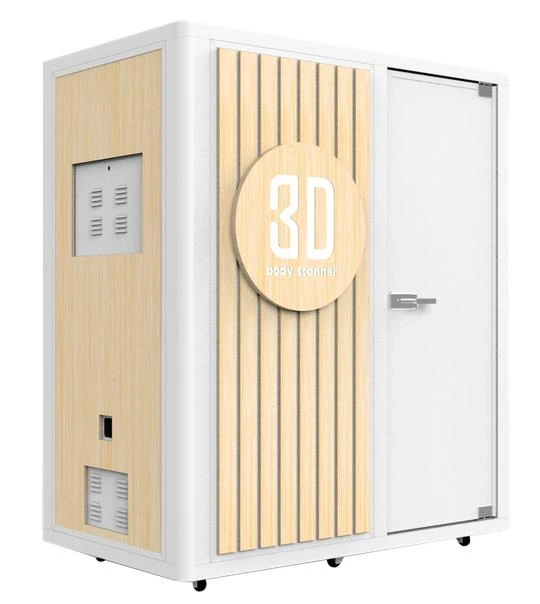

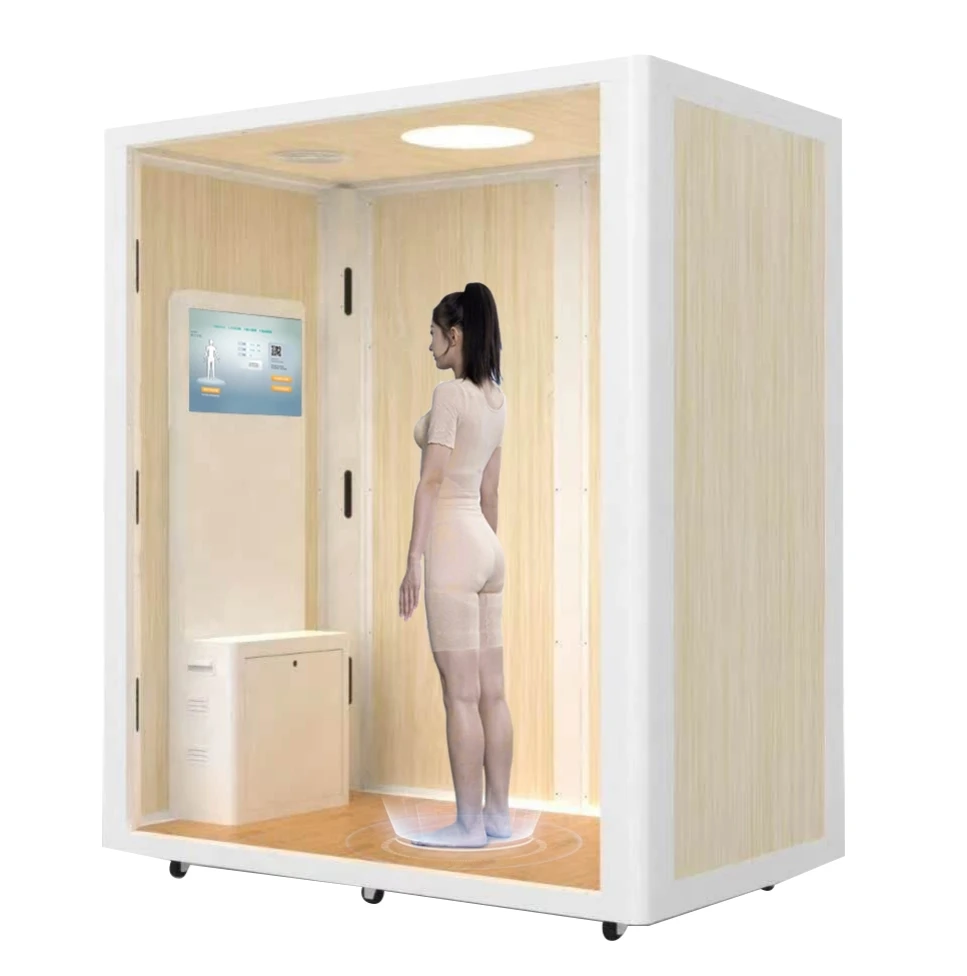

Xianku 3D Intelligent Body Scanning Room
Professional 3D Body Scanning
01 Precision
High accuracy
720° omni-directional millimeter-level accuracy
· 12 deep structured light sensors, financial payment level precision, accuracy up to 99.5%.
· Massive human body adaptive measurement algorithm, ten million Asian and European human body 3D model data continuous training.
· 200,000+ real human body data, 100,000+ clothing pattern accumulation, far ahead in the field.
02 Fast
Super fast
1 second to complete a full-body scan
· 1 second to complete the construction of point clouds containing 500,000+ vector coordinates, the highest efficiency in the world.

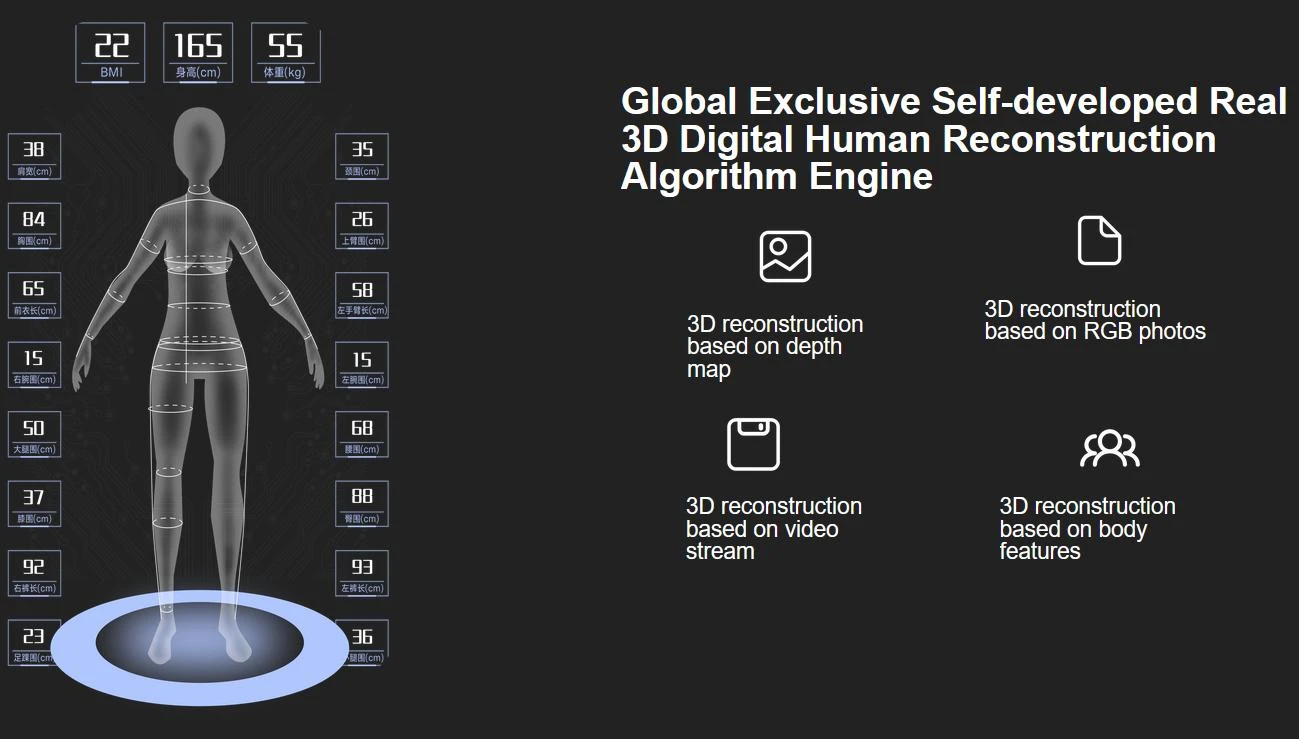

· 1 second to complete real-time measurement of 128 human signs data and 200 human body circumference data.
· 1 minute to generate a comprehensive physical sign data report,including measurement data, body composition analysis, posture report, trend analysis, contour analysis, wear report, and size recommend in 7 major sections.
03 Wide application
Widely used
Multi-industry full-scene one-stop solution
· It is the only one in the world that realizes diversified mass production and large-scale deployment, and comprehensively covers multiple key industries such as clothing, body measurement, health, and beauty industry.
· A full set of software system, through the data collection, analysis.application, to provide clothing customization, body diagnosis, health shaping, ergonomic design and other areas of one-stop solution.
· Equipment data service at the same time support app side, web side official account, small program and other multi-end display.
Safe, Stable and Reliable
Secure Data Segregation Encryption
We do not collect financial information such as face and fingerprints, and the user's basic information, body type information and order information are segregated from each other and encrypted separately to ensure the absolute security of the user's private information.
Stable technical architecture and deployment
A full set of self-developed customer cloud and algorithms, distributed cloud deployment, to protect the national 1000 + points offline stable operation of the crowd, the common choice of many industry leading enterprises listed companies.
Efficient self-evolving algorithm cluster
22 provinces and cities across the country,1000+ offline application scenarios, 6 years of application algorithm training, 200,000+ real human body databases, 100,000+ garment layout accumulation.
Application Scenarios
Campus physical examination
Gym
Medical diagnosis
Clothes stores
Specifications
|
Product Name |
3D Intelligent Body Scanning Room CBS-002 |
3D Intelligent Body Scanning Room CBS-002S(Body Fat Scale Edition) |
|
Body Fat Scale or Not |
No |
With four-electrode body fat scale |
|
Equipment Weight |
420KG |
|
|
Input Voltage/Current |
AC220V/10A |
|
|
Rated Power |
400W |
|
|
Equipment |
1.85m long * 1.10m wide * 2.02m high |
|
|
External Volume of Equipment |
1.89m (L) * 1.15m (W) * 2.19m (H), with the opening facing the long side |
|
|
Installation Site Requirements |
3.0m (L)* 2.5m (W)* 2.6m(H)(Transport Volume3.5m3;450KG) |
|
|
Depth Camera |
of 16 |
|
|
Sensor Resolution |
640*480/30FPS |
|
|
Sensor Range |
0.4m to 3m |
|
|
Sensor Accuracy |
@1m:1 to 3mm |
|
|
Measuring Range of the Whole Machine |
Vertical cylindrical space: diameter 0.8m * height 2.0m |
|
|
Noise |
<50 dB |
|
|
Working Temperature |
10°C to 35°C (Best working temperature: 27 °) |
|
|
Working Humidity |
<50% |
|
|
Network Requirements |
Wired Network |
|
