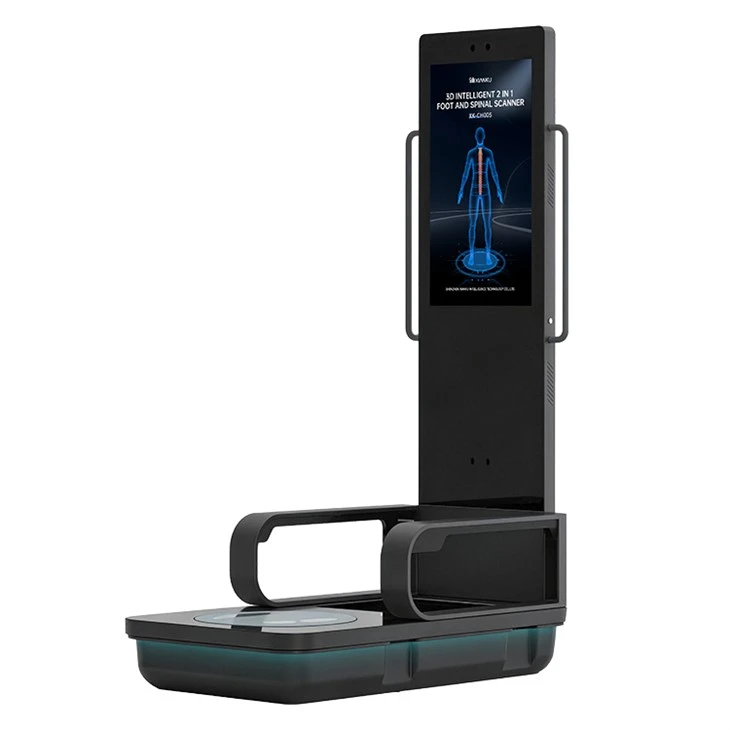

Xianku 3D Intelligent Foot And Spinal 2 in 1 Scanner

Professional Spinal and Foot Health Assessment

Intelligent Marketing Tool

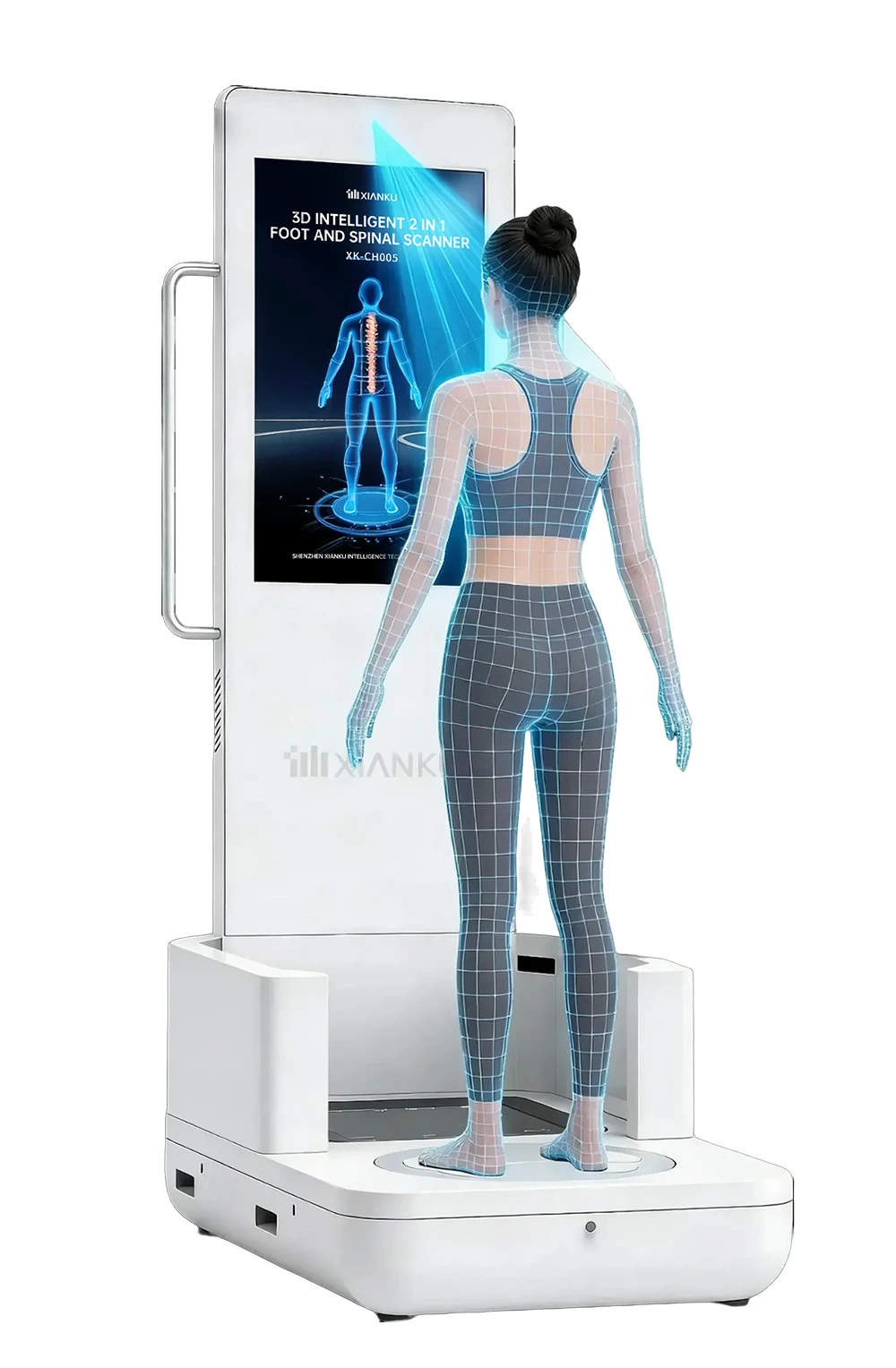

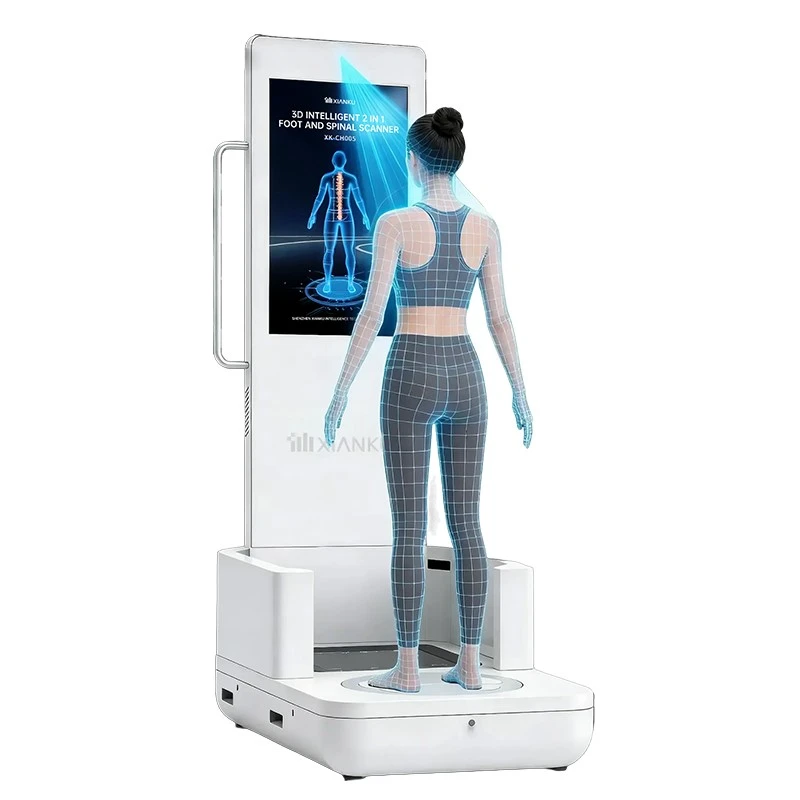

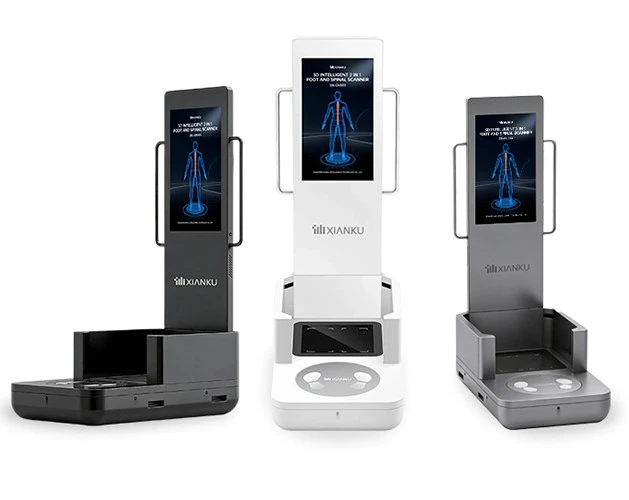

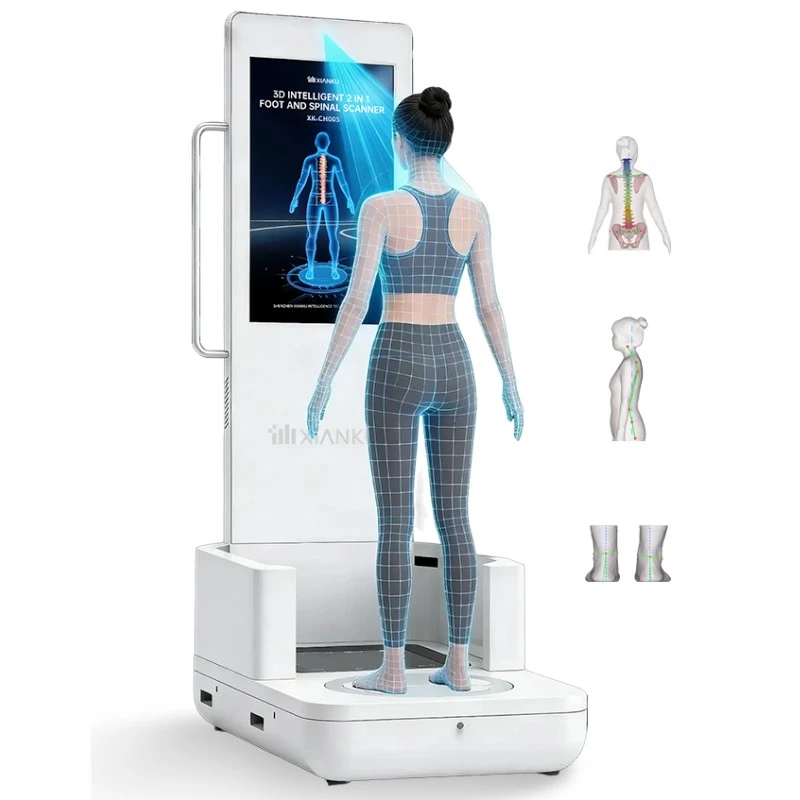

Xianku 3D Intelligent 2 in 1 Foot and Spinal Scanner

160 Items of Human Foot and Body Health Data were Detected in 1 Minute

3D Body and Foot Sacnning

3D Body Posture Assessment

AI Spinal Health Assessment

Body composition Measurement

Health Solutions and Products Recommendation



Comprehensive Human Body Health Assessment

One Smart Scanner is Equal to a Full-scale Body Health Screening Facility

Real 3D Human Body Model

45 Items of Circumference Data

15 Body Composition Analysis

20 Physical Health Assessment

3D Spine Assessment

3D Chest Health Diagnosis

4D Body Type Tracking Comparison

32 Foot Size Measurements

5 Foot Health Assessments

Real 3D Foot Model

Al Recommend System

6 Core Advantages

Core Technology High-End Choice

More intuitive

Exclusive 3D structured light scanning and 3D reconstruction, 1:1 real 3D human body and foot modeling.

More efficient

30 seconds to scan and detect, 1 minute to view the report.

More comprehensive

Coverage of 8 major parts of the body, over 160 items of body and foot data.

More professional

Professional 3D body posture assessment + AI spine health assessment+ 3D foot health assessment

More intelligent

AI intelligent recommendation system to assist merchants in sales.

More technologically

Millimeter-level measurement accuracy for rapid assessment of sub-optimal health conditions.

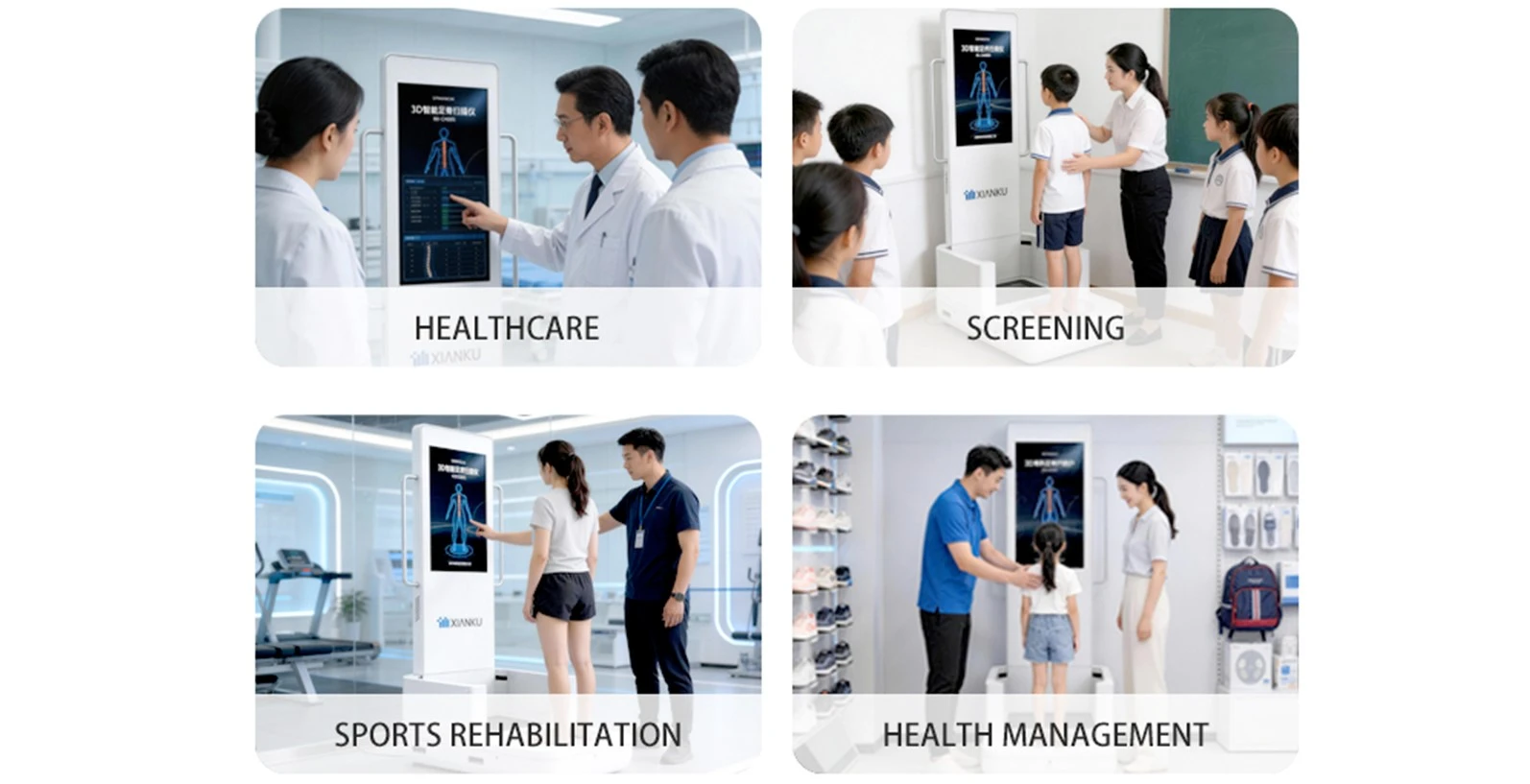

Multi-scenario Application

Open a new era of digital 3D physical examination

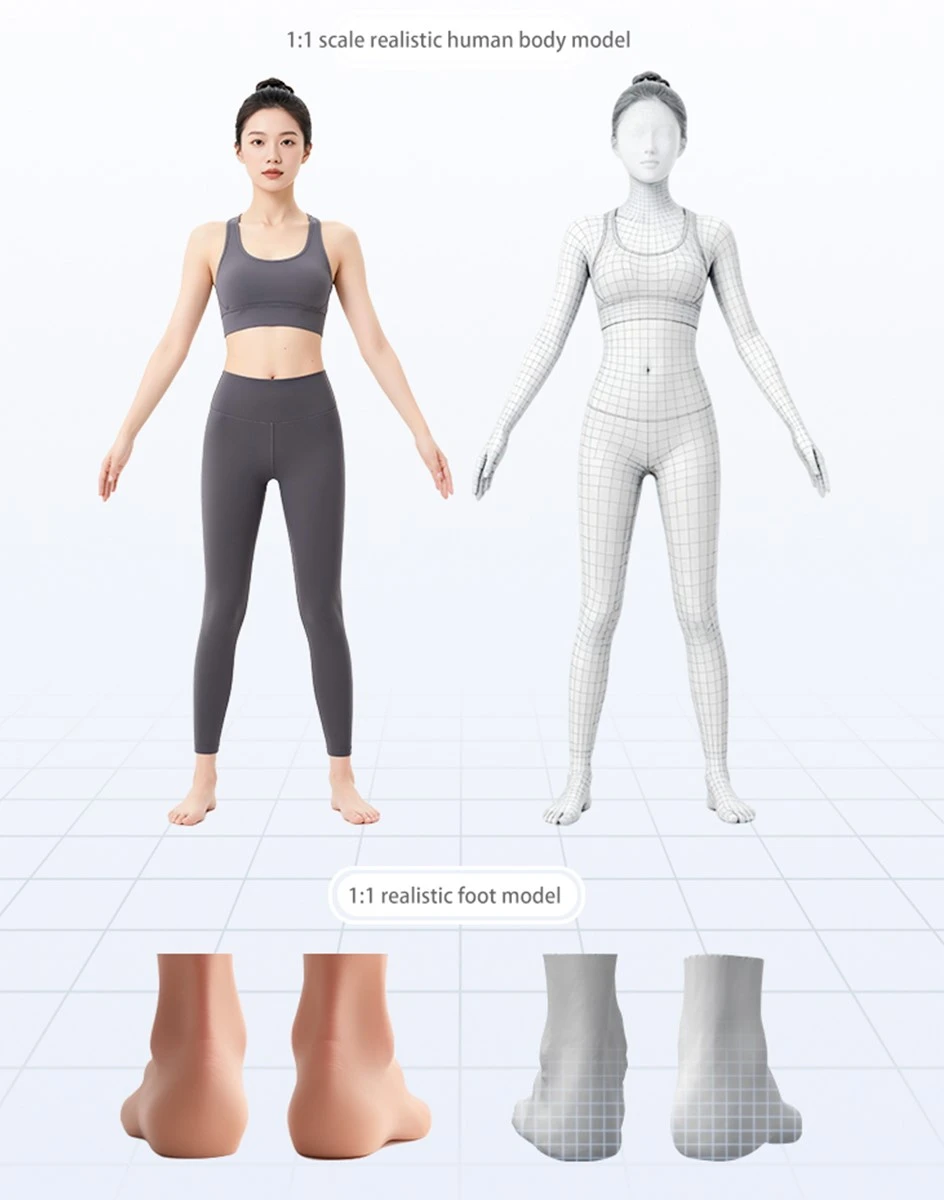

720° 1:1 Real 3D Human Body and Foot Models

Through Xianku's self-developed 3D structured light scanning and 3D human body reconstruction technology, it quickly builds a 1:1 real 3D human body and foot model, accurately restores human body and foot details, and intuitively displays the user's body posture,spinal health,foot health.

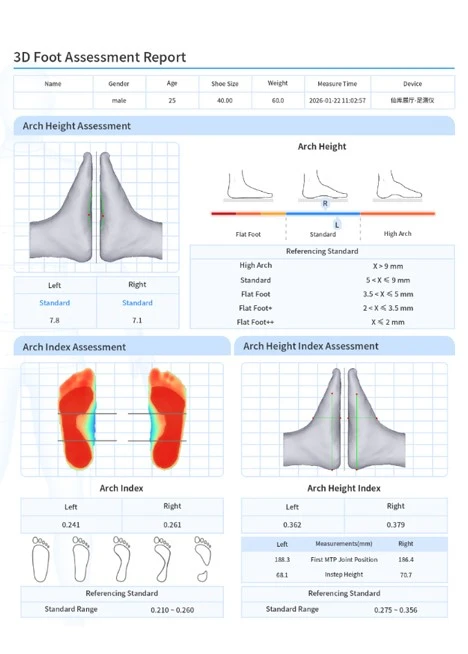

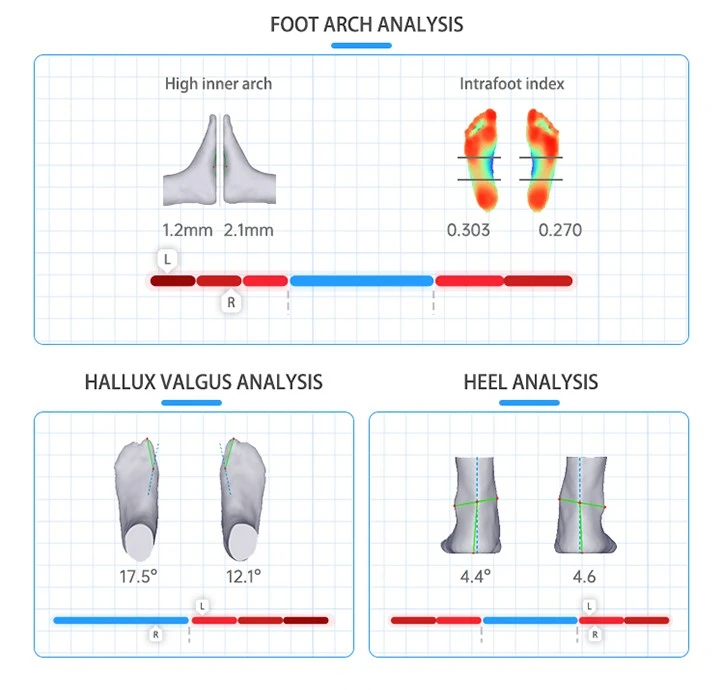

32 Foot Data Measurement and Health Analysis

Through Xianku's independently developed 3D structured light scanning and 3D foot reconstruction technology, a 1:1 realistic foot model can be quickly created, accurately capturing foot details and health issues, and intuitively displaying the user's foot health status and precise foot dimension data.

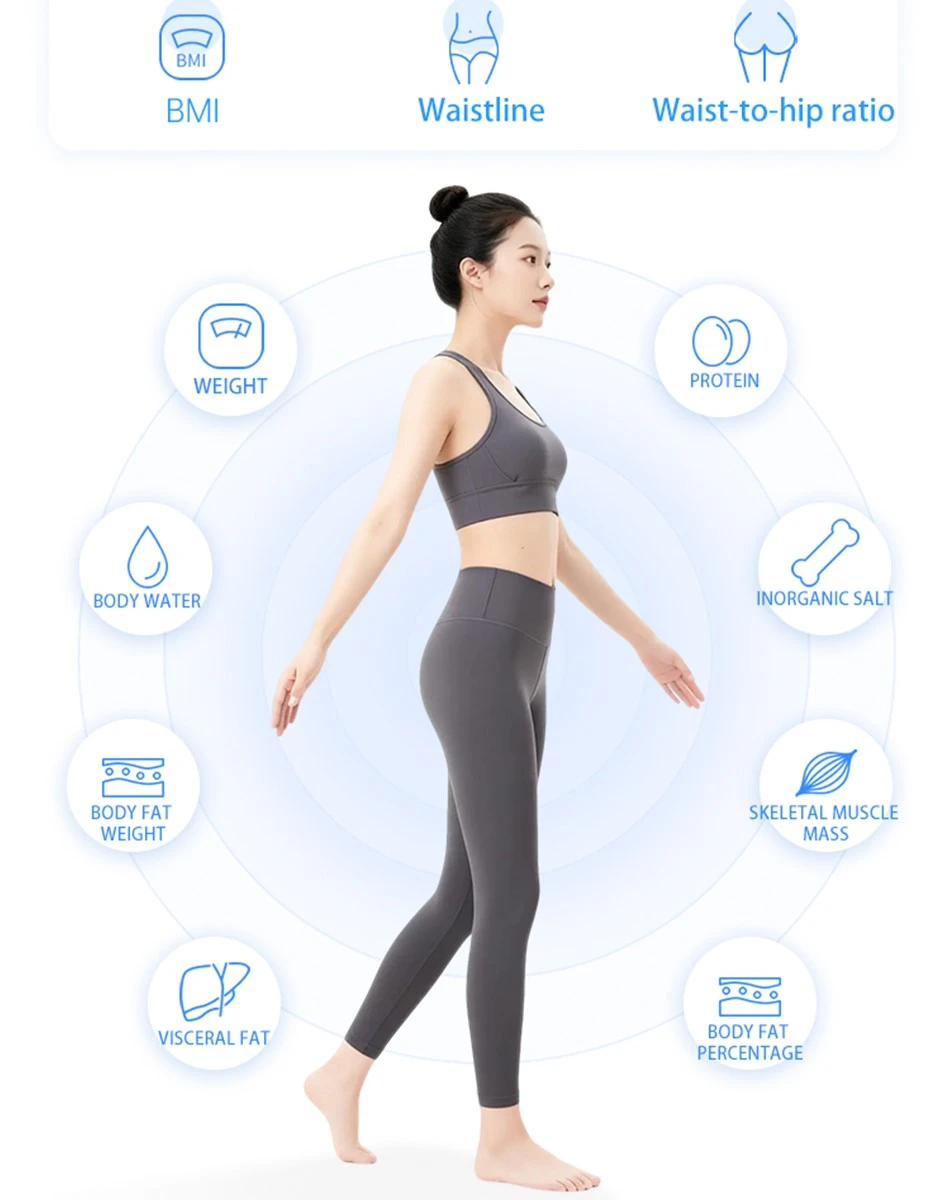

15 Professional Grade Body Compositions

Self-developed BlA fusion algorithm is more accurate than traditional body fat measurement method

This device uses a self-developed fusion algorithm that combines bioelectrical impedance with a non-rigid body volume density algorithm. It can detect 15 body composition metrics, providing more accurate data than standard body fat measurements. Key indicators including BMI, body fat rate, visceral fat levels, and skeletal muscle ratio allow for comprehensive assessment of obesity levels.

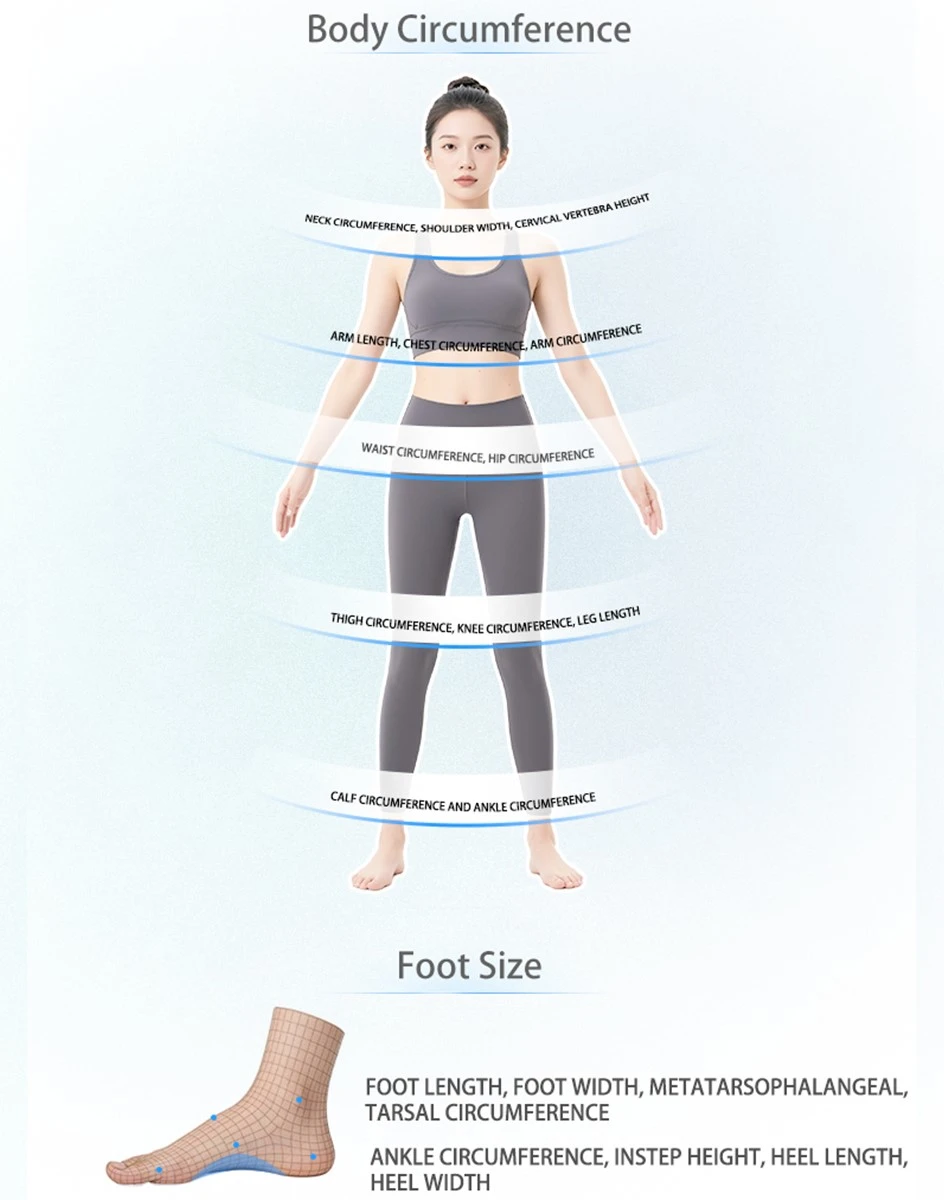

77 Body Circumference Data

Exclusive body-adaptive measurement algorithms for comprehensive assessment of body circumference, body type, and foot measurement.

Leveraging the advantage of Xianku's massive human body adaptive measurement algorithms, it can quickly complete millimeter-level human body measurements and intelligently analyze body shape issues. The data can also be directly used for advanced customization of clothing,shoes and customization of spinal orthotics ,custom insoles, 3D printed shoes,and other customization.

3D Body Shape Assessment

Visually presents 20+ physical posture problem assessments in 9 areas

It completes 20+ body health diagnoses for the core parts of the human body, such as the shoulder type, the waist-hip type, the leg type, the belly type, the back type, etc. The intuitive 3D model and accurate data enable visualization, standardization and digitization of body health assessment.

It empowers industries such as body shaping, sports fitness, postpartum rehabilitation, medical care, etc., to help coaches or physique teachers to quickly, scientifically and comprehensively analyze and determine customers' body posture problems, formulate targeted sports training plans, and match corrective rehabilitation projects.

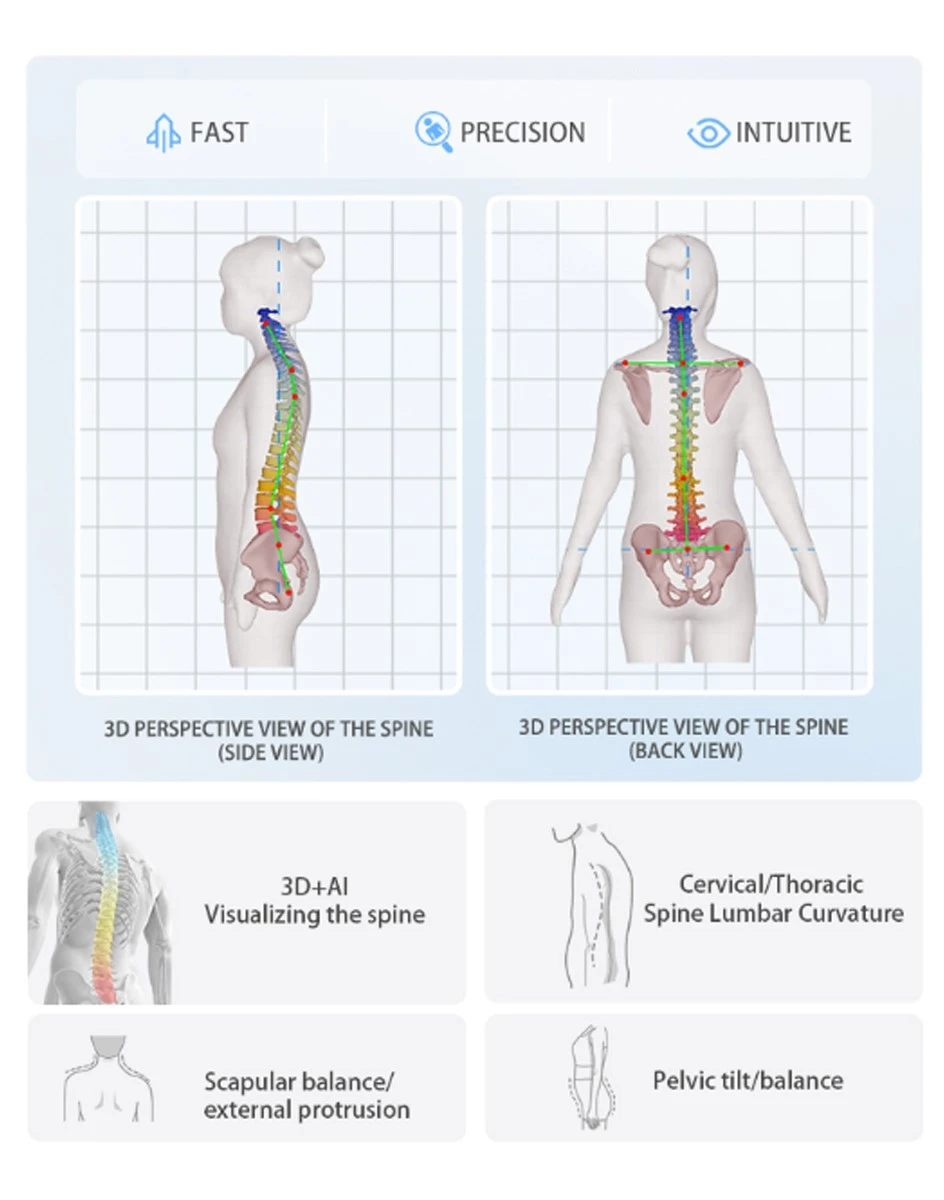

AI Spine Assessment

Exclusive 3D spine health assessment for a comprehensive assessment of scoliosis and other risks

Through the real 3D human model, combined with AI human bone meridian big data, you can visually view the spine shape and evaluate the health status of the spine.It assists in evaluating the risk of scoliosis, identifying posture problems such as forward neck posture, kyphosis, lumbar curvature, and pelvic tilt, and provides a more scientific and professional reference for physical health management, posture correction, sports risk assessment, and other fields.

Industry's First 3D Chest Assessment

The industry's first use of non-contact 3D structured light scanning technology to reconstruct the real three-dimensional shape of female breasts, 20+ detailed measurement data, low-cost, convenient, objective standardization of comprehensive assessment of breast shape, size and symmetry, providing underwear matching code, underwear customization and breast care programs and other applications.

3D Body Image Dynamics Tracking to Visualize Changes in Body Shape

With the 1:1 real 3D body model, the before and after changes of the body shape can be seen at a glance. Whether it's weight loss, shaping or body correction, 3D body modeling dynamics can visualize the effect of before and after changes, which is more intuitive than traditional 2D photos.

Professional 3D Digital Body Scanning Report

Available on devices and mobile devices, cloud storage for anytime viewing, support for printing and downloading

Mobile Report

Paper Report

Xianku AI Intelligent Recommendation System Makes Selling Reasonable and Easier

According to the results of the customer's physical measurement data,intelligent recommendation of the merchant's products or services, to help merchants sales transactions.

Step 1 Backend Configuration

Merchants set up the products or services that can be provided by the corresponding tags in the background according to the body type,body posture,spinal,foot health isses,body composition,customer preferences tags.

Step 2 Program recommendations (merchant products or projects)

After the user's body measurement is completed, intelligent recommendations of products or programs from merchants are made based on the customer's body type,body posture,spinal,foot health isses,body composition,customer preferences tags.

Digital Health Records and CRM Management System

Automatically import customer information, digital management is more convenient

Provide digital, intelligent customer data management for merchants, easy to query management, follow up the transaction.

Data comparison

Evaluation report

Health programs

Appointment record

Service record

Product Parameter

Product Name	Xianku 3D Intelligent Foot and Spinal 2 in 1 Scanner
Configuration checklist	3D intelligent scanner, power cord, product manual
Dimensional parameters	The dimensions of the edge on the glass surface of the scanner are 40Omm (Length) * 40Omm (Width)* 15Omm (Height from the glass surface).
Product weight	Approximately 105 kg
Original point cloud	Number of point clouds: approximately 2 million; Point cloud density: approximately 28/cm ²
Measuring range	Measurement distance: 0.6-0.75m, optimal measurement distance: 0.6m; Applicable height: 110cm~200cm;
Hardware configuration	CPU: AMD 5500U GPU: Integrated Radeon Vega 6 Graphics Core Memory: DDR4 3200MHz 8GB Storage: 128GB SSD Sound: 10W Amplifier & Speakers Power: AC 100-240V 50/60Hz Network: Supports 1000M Ethernet, WIFI6/BT 5.2, built-in independent antenna I/O Interfaces: 1*3-prong power connector, 3*USB, 1*RJ45, 1*HDMI high-definition interface
Display screen	32-inch high-definition LCD capacitive touchscreen, 1080*1920
Measurement range	Weight range: 10-200KG Body fat applicable: 10-70 years old
Data service	160 3D sign data including circumference data, body shape, body composition, spinal evaluation, chest diagnosis,foot data and body change trends
