Executive Summary
The global footwear industry faces a $62B annual loss due to ill-fitting shoes (World Footwear Report, 2023). Xianku3d Intelligent addresses this through millimeter-accurate 3D foot scanning technology. By capturing 30+ biometric parameters in 1 second and generating 1:1 3D models, this solution transforms shoemaking processes-from last customization to 3D-printed footwear.
The Foot-Shoe Mismatch Crisis
Why traditional sizing fails modern shoemaking
Standard shoe sizing relies on archaic measurements (length/width only), ignoring critical variables like arch dynamics and pressure distribution. Studies show 72% of adults wear incorrectly sized shoes (Journal of Foot and Ankle Research, 2022), causing health issues and returns. Xianku's scanner captures multidimensional data essential for biomechanically optimized shoemaking:
- Foot Width Index: Classifies narrow/standard/wide feet
- Hallux Valgus Angle: Measures big toe deviation (e.g., Miss Zhao's 15.2° right foot)
- Arch Index: Quantifies flat/standard/high arches (critical for support design)
- 3D Girth Mapping: 296.3mm heel girth vs. 212.0mm ball girth
Xianku3d's Technological Edge in Shoemaking
Infrared structured light meets AI analytics

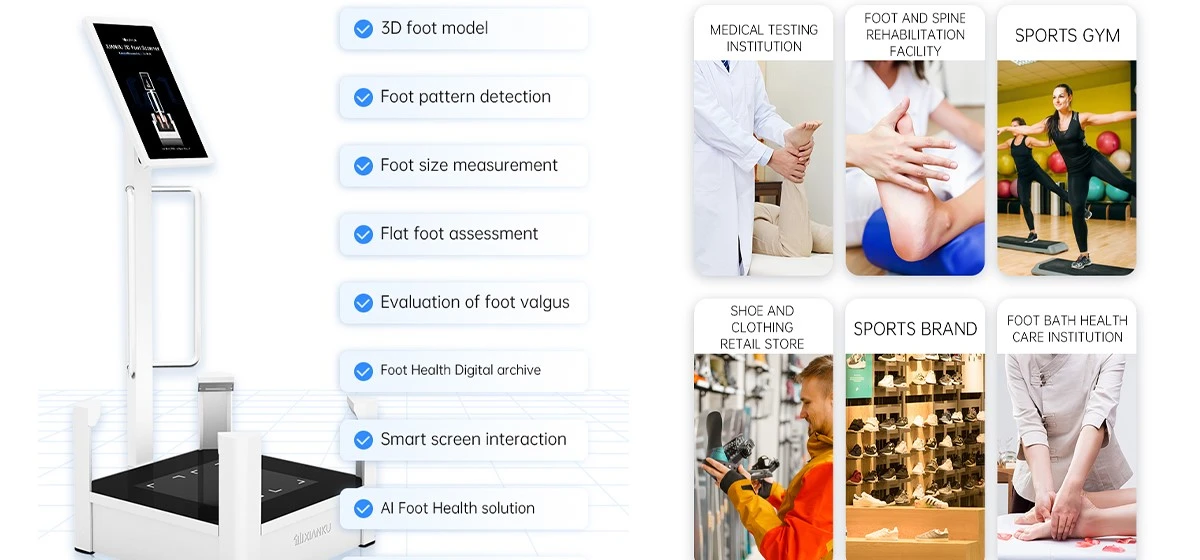

Unlike laser scanners requiring 20+ seconds, Xianku3d's B002 device uses non-contact infrared to capture 2 million data points in 1 second. Its proprietary algorithms generate:
Comprehensive Outputs:
| Data Type | Parameters Measured | Shoemaking Application |
|---|---|---|
| Dimensional (mm) | Foot length, arch height, malleolus height | Last customization, size grading |
| Angular (°) | Hallux valgus, heel inclination | Toe box geometry, heel counter design |
| Girth (mm) | Ball/instep/ankle circumference | Upper pattern engineering |
| Biomechanical | Arch index, foot width index, pressure distribution | Orthotic integration, stability features |
From Scan to Shoe: Custom Shoemaking Workflow
How 3D data enables mass customization
Xianku3d integrates with digital shoemaking ecosystems through:
3D Last Generation
- Scans convert to digital lasts within 5 minutes, accommodating asymmetries (e.g., 0.4mm width difference between Miss Zhao's feet).
3D Printed Components
- Orthotic insoles: Adjusted to arch height (e.g., 4.7mm right vs. 5.9mm left)
- Custom uppers: Stretch zones aligned with joint positions
AI-Driven Design
- Recommends materials/styles based on gait patterns and pressure maps.
Economic Impact: Solving Industry Pain Points
Reducing waste, enhancing fit
Table 2: Traditional vs. Xianku3d-Enabled Shoemaking
| Metric | Traditional Process | Xianku3d-Powered Process | Improvement |
|---|---|---|---|
| Measurement Time | 20+ minutes (manual) | 1 second | 99.9% ↓ |
| Last Modification Cost | $180/prototype | $15 (digital iteration) | 92% ↓ |
| Return Rate | 35% (size-related) | <8% | 77% ↓ |
| Custom Order Lead Time | 6-8 weeks | 72 hours | 85% ↓ |
Data: Footwear Industry Analysis Report (2024)
Case Study: Dr. Kong's Custom Health Shoes
Validating clinical outcomes
Hong Kong-based Dr. Kong integrated Xianku scanners in 300+ stores. Results over 6 months:
- 68% reduction in plantar fasciitis complaints in custom shoe wearers
- 22% increase in average order value with 3D-printed orthotic options
- Digital lasts reduced new product development from 12 weeks to 17 days
Industry Challenges & Data-Driven Solutions
Addressing persistent shoemaking hurdles
Challenge 1: Standardized Sizing Inaccuracy
- Problem: Generic sizing ignores 74% of foot shape variations (ISO/TC 137).
- Solution: Xianku3d's Foot Width Index categorizes narrow/wide feet using sex-specific thresholds (e.g., N≤1 for females).
Challenge 2: High Customization Costs
- Problem: Manual casting increases expenses by 300-500%.
- Solution: Automated scanning cuts labor by 90%, enabling scalable customization.
Challenge 3: Last Library Limitations
- Problem: Standard lasts cover <40% of anatomical needs.
- Solution: AI generates hybrid lasts using 150,000+ archived templates.
Challenge 4: Dynamic Fit Assessment
- Problem: Static measurements miss gait-related fit issues.
- Solution: Weight-bearing scans capture mid-step arch collapse tendencies.
Future of Shoemaking: Digital Twins & Sustainability
Where 3D scanning transforms manufacturing
Xianku3d's scanner creates "digital foot twins" for:
- Virtual try-ons reducing physical samples
- Predictive wear simulations (e.g., material fatigue)
- Closed-loop recycling using precise material calculations
Conclusion
Xianku3d's 3D scanner redefines shoemaking by converting anatomical data into actionable designs. With 50+ patents and 5 million+ foot scans globally, its integration of millimeter accuracy, AI analytics, and 3D printing capabilities positions it as the cornerstone of Industry 4.0 footwear production.
Appendix: Technical Notes
- Hallux Valgus Angle: Deviation >10° requires widened toe boxes (Journal of Orthopaedic Research).
- Arch Index: Calculated as midfoot area/whole footprint (X≤0.210=arched; 0.260<X≤0.280=flat foot).
- Point Cloud Density: Xianku's 28 points/cm³ enables sub-millimeter error margins.
Authoritative References
- Global Footwear Returns Report 2023
- ISO/TC 137 Footwear Sizing Standards (ISO 9407:2019)
- Biomechanics of Custom Footwear
