For 3D printed orthotics manufacturers, the quality of the final product begins long before printing. It begins with data. If the original foot model is incomplete, distorted, or based only on a 2D footprint, the final orthotic device may fail to match the user's real anatomy. This is especially critical for functional orthotics such as bunion correction supports, high arch orthotic devices, custom insoles, and personalized footwear components.
The foot is often called the body's "second heart," but from an orthotic manufacturing perspective, it is also the foundation of the entire kinetic chain. Abnormal foot structure may influence ankle alignment, knee loading, pelvic balance, and spinal posture. When foot data is inaccurate, the consequences are not only poor fit-they may also affect comfort, correction efficiency, and long-term user compliance.
That is why STL files format export for 3D printed orthotics is becoming a key capability for B2B orthotic manufacturers, 3D printing service providers, orthopedic product designers, rehabilitation suppliers, and custom footwear brands.
Xianku's 3D foot scanning system provides a complete digital workflow: 1-second infrared structured light scanning → 5-second report generation → ±1mm precision measurement → 1:1 full-foot 3D model → STL/OBJ 3D model export → 3D printed orthotic customization.
Why STL File Quality Matters in 3D Printed Orthotics
STL is one of the most widely used file formats in 3D printing. It stores a 3D surface as a mesh made of triangular facets. For orthotic manufacturers, the STL file serves as the bridge between the human foot and the printed device.
In custom orthotics, a high-quality STL file helps support:
- Accurate foot shape reproduction
- Better fitting between orthotic and foot surface
- More reliable CAD modification
- Improved design of functional support zones
- Faster transition from scan data to printable model
- Reduced manual modeling workload
- More consistent production across multiple orders
- Better compatibility with 3D printing workflows
For products such as bunion orthotics, high arch supports, functional insoles, heel stabilization devices, or customized footwear components, the STL file must reflect the true structure of the foot-not just a flat footprint or approximate size.
In B2B production, poor input data creates downstream problems: more manual correction, lower production efficiency, more fitting complaints, and higher return rates. Accurate scan-to-STL output is therefore not just a technical feature. It is a business-critical production advantage.
The Limitation of Traditional 2D Foot Data in Orthotic Manufacturing
Traditional foot assessment often relies on 2D footprints, pressure mats, manual measurements, plaster casts, or basic laser scanning. These methods may provide useful references, but they often lack the full spatial detail required for digital orthotic manufacturing.
A pressure mat can show how the sole contacts the ground. A 2D footprint can show plantar contact area. Manual measurement can record length and width. However, none of these methods alone can fully capture the foot's three-dimensional structure.
Traditional foot data may miss:
- Arch height and arch curvature
- Instep height and midfoot volume
- Heel width and heel alignment
- Forefoot width and toe morphology
- Foot girth and circumference
- Bunion-related structural deviation
- High arch geometry and lateral loading tendency
- Left-right asymmetry
- Full 3D surface needed for CAD orthotic design
This is especially important for complex orthotic applications. A bunion correction aid requires accurate understanding of forefoot shape, toe angle, and medial protrusion. A high arch orthotic support requires precise arch height, arch contour, and midfoot geometry. A custom insole requires plantar surface matching, heel seating, and support-zone design.
In short, 2D data is not enough for high-quality 3D printed orthotics. Manufacturers need accurate, complete, exportable 3D foot models.
Xianku 3D Foot Scanning: From Physical Foot to Printable Digital Model
Xianku is a global leader in 3D precise body-sign data operation services, helping health, wellness, orthopedic, and footwear partners turn human body structure into digital product intelligence.
Xianku's 3D foot scanner uses advanced Infrared structured light technology to capture the complete surface structure of both feet. Compared with traditional laser scanning or pressure mat systems, infrared structured light provides a faster, more comfortable, and more production-ready data capture experience.
The system can complete dual-foot scanning in 1 second and generate a professional report in about 5 seconds. With ±1mm precision, it supports high-quality dimensional measurement and digital modeling for orthotic product development.
Core technical advantages include:
- 1-second scanning for both feet
- Non-contact infrared structured light capture
- ±1mm precision for professional-grade measurement
- 5-second digital report generation
- 1:1 real 3D full-foot model reconstruction
- 30+ biomechanical datasets covering length, width, girth, height, arch, and morphology
- Exportable STL/OBJ 3D models
- Seamless connection with CAD design and 3D printing systems
For 3D printed orthotics manufacturers, this means the scanner does not simply provide a measurement report. It provides a digital production foundation.
Why 1:1 Full-Foot 3D Models Are Better Than Flat Footprints
A 1:1 full-foot 3D model captures the true external geometry of the foot. This includes the plantar surface, arch shape, heel structure, forefoot profile, toe region, instep height, and overall volume.
This is very different from a flat footprint. A footprint only shows contact. A 3D model shows shape.
For orthotic manufacturing, this difference is critical.
A 1:1 full-foot 3D model helps designers understand:
- Where support should be added
- Where pressure relief may be needed
- How the arch should be matched
- How heel stabilization can be designed
- Whether forefoot width affects orthotic fit
- How bunion-related deviation changes the device shape
- How high arch geometry should guide support design
- Whether left and right foot models need different corrections
This allows B2B manufacturers to build a more reliable scan-to-design-to-print workflow.
ACA & AHI Algorithm: Better Arch Data for Functional Orthotic Design
Arch analysis is one of the most important parts of custom orthotic design. However, many traditional systems rely heavily on contact area to classify the arch. This may lead to errors, especially in users with severe pronation, supination, high arches, or abnormal foot posture.
Xianku's self-developed ACA & AHI algorithm provides a more advanced arch evaluation method.
ACA stands for Arch Conduction Angle.
AHI stands for Arch Height Index.
The ACA & AHI algorithm combines:
- 3D full-foot model data
- Arch height index
- Arch morphology
- Medial longitudinal arch structure
- Heel-to-midfoot spatial relationship
- Foot posture tendency beyond simple contact area
For orthotic manufacturers, this is valuable because arch classification influences design strategy. A high arch support requires different structure from a low arch support. A foot with inward or outward deviation may need different stabilization logic. If arch data is wrong, orthotic design may also be wrong.
By combining the 3D full-foot model with ACA & AHI-based arch analysis, Xianku helps manufacturers move from generic templates to more personalized functional designs.
30+ Biomechanical Datasets for Orthotic Product Development
A production-ready orthotic workflow needs more than a model file. It also needs structured measurement data that can guide design rules, customization parameters, and quality control.
Xianku's system outputs 30+ biomechanical datasets, including:
- Foot length
- Foot width
- Forefoot width
- Heel width
- Ball girth
- Foot circumference
- Instep height
- Arch height
- Arch type
- Toe structure
- Heel alignment reference
- Left-right asymmetry
- Foot morphology classification
- Custom insole design reference
- Orthotic product design reference
- 3D printing production data
For B2B manufacturers, these datasets can help standardize customization while still preserving individual anatomical differences. This is important for scaling production without losing personalization.
STL/OBJ 3D Models: Connecting Scanning Data with CAD and 3D Printing
Xianku's scanner can output STL/OBJ 3D models, allowing partners to connect foot scanning data directly with downstream design and manufacturing systems.
STL files are especially useful for:
- 3D printed orthotic insoles
- High arch support devices
- Bunion correction orthotics
- Heel cups and heel stabilization products
- Custom footwear lasts
- Footwear fitting analysis
- Orthopedic product prototyping
- CAD-based orthotic modification
OBJ files may be useful when:
- Texture or richer surface data is required
- Visualization is part of the customer experience
- The model is used in 3D presentation systems
- Partners need additional compatibility for design platforms
Together, STL/OBJ export provides greater flexibility for different production environments. Manufacturers can import the files into CAD software, modify support zones, design correction structures, and prepare models for 3D printing.
Application Examples: Bunion Orthotics and High Arch Orthotics
1. STL Export for Bunion Orthotic Devices
Bunion-related products require accurate forefoot geometry. A simple shoe size is not enough. Designers may need to understand medial protrusion, forefoot width, toe alignment, and the relationship between the big toe and metatarsal region.
Xianku's 3D model can support:
- Forefoot morphology evaluation
- Toe region modeling
- Bunion protrusion reference
- Custom device fit improvement
- Better CAD design for localized relief or correction support
2. STL Export for High Arch Orthotic Supports
High arch feet often require more careful support and cushioning design. If the arch support is too low, it may be ineffective. If it is too aggressive, it may feel uncomfortable.
Xianku's 3D data can help manufacturers evaluate:
- Arch height
- Arch curvature
- Instep volume
- Lateral loading tendency
- Heel seating requirements
- Personalized arch support geometry
This allows high arch orthotics to be designed with a better balance between support, comfort, and stability.
Scan-to-Print Workflow for 3D Printed Orthotics
A typical Xianku-powered workflow for B2B orthotic customization may include:
Foot scanning
The user completes a non-contact 1-second dual-foot scan.

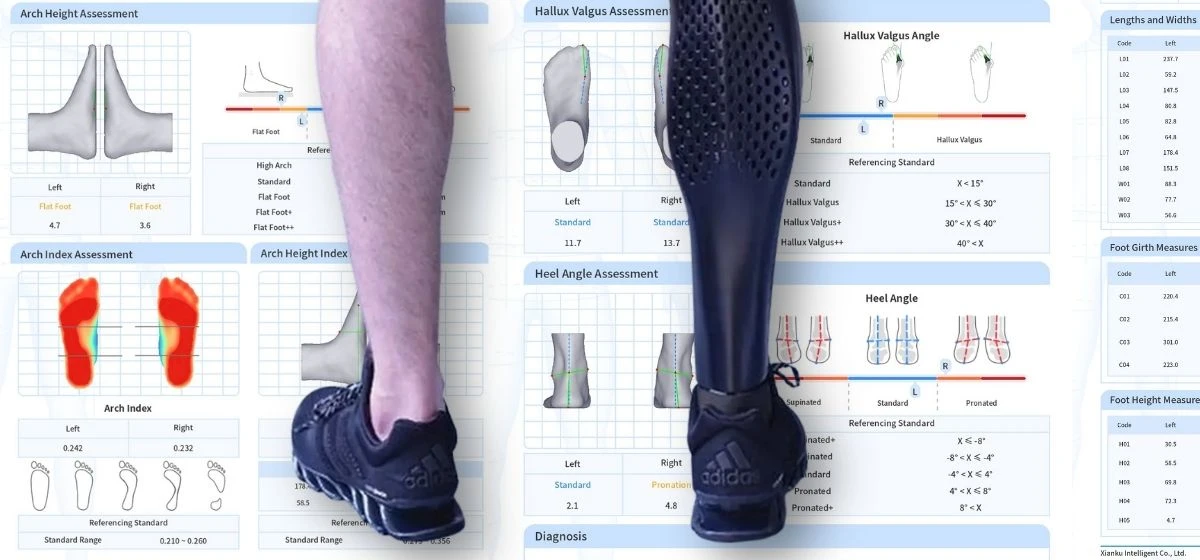

Digital report generation
The system generates a report within about 5 seconds with ±1mm precision.
3D model reconstruction
The scanner creates a 1:1 real 3D full-foot model.
Biomechanical analysis
ACA & AHI algorithm and 30+ biomechanical datasets support foot structure evaluation.
STL/OBJ model export
The 3D model is exported for CAD design or production use.
Orthotic design
Designers modify support zones, relief zones, correction structures, and product geometry.
3D printing
The customized orthotic device is printed using suitable materials and post-processing methods.
Fitting and follow-up
The user receives a more personalized orthotic solution based on real foot data.
This closed-loop workflow helps manufacturers reduce manual work, improve design consistency, and create scalable customization services.
3D Foot Scanning vs Traditional Orthotic Data Collection
|
Assessment Area |
Traditional 2D / Pressure Mat |
Xianku 3D Structured Light Modeling |
|
Data Capture |
Contact area or pressure map |
Full 3D foot structure |
|
Scan Speed |
Varies by method |
1-second scanning |
|
Report Speed |
Manual or system-dependent |
About 5 seconds |
|
Accuracy |
Limited structural measurement |
±1mm precision |
|
Arch Evaluation |
Often area-based |
ACA & AHI algorithm |
|
Data Output |
2D image or basic report |
30+ biomechanical datasets |
|
Model Export |
Limited or unavailable |
STL/OBJ 3D models |
|
Manufacturing Use |
Requires manual interpretation |
CAD and 3D printing ready |
|
Best Use |
Basic assessment |
Custom orthotics and digital production |
The core difference is that Xianku's system creates production-ready digital assets, not just assessment visuals.
Q&A: Common Questions About STL Files Format Export for 3D Printed Orthotics
How does a 3D foot scan help custom orthotic production?
A 3D foot scan captures a real 1:1 digital model of the foot. This model can be exported as STL/OBJ 3D models and used in CAD software or 3D printing workflows to design customized orthotics based on real foot structure.
Why is STL file export important for 3D printed orthotics?
STL file export allows foot scan data to move directly into the 3D printing production chain. It helps manufacturers reduce manual modeling, improve fitting accuracy, and design orthotic products around the user's real anatomy.
Is a 2D footprint enough for custom orthotic design?
A 2D footprint can provide basic contact information, but it cannot fully capture arch height, instep volume, heel structure, foot girth, or complete foot morphology. For 3D printed orthotics, full 3D data is much more useful.
What is the ACA & AHI algorithm?
The ACA & AHI algorithm is Xianku's self-developed arch assessment method. It combines Arch Conduction Angle, Arch Height Index, 3D full-foot modeling, and arch morphology to provide more reliable arch evaluation than traditional area-based methods.
Can STL files be used for bunion orthotics?
Yes. STL files can support CAD design for bunion-related orthotic devices by providing accurate forefoot geometry, toe region structure, and localized shape references.
Can STL files be used for high arch orthotics?
Yes. STL files are highly useful for high arch orthotic supports because they provide accurate arch height, curvature, instep volume, and full-foot geometry for personalized support design.
How fast is the Xianku scanning workflow?
Xianku's scanner can complete dual-foot 1-second scanning and generate a professional report in about 5 seconds, helping B2B partners improve efficiency in high-volume customization environments.
Final Takeaway: Better Orthotics Start with Better 3D Data
For 3D printed orthotics manufacturers, customization quality depends on the quality of the original foot data. A flat footprint or pressure map may be useful for reference, but it cannot replace a complete 1:1 full-foot 3D model.
STL files format export for 3D printed orthotics enables a direct connection between foot health assessment and digital manufacturing. With Xianku's Infrared structured light technology, 1-second scanning, ±1mm precision, proprietary ACA & AHI algorithm, 30+ biomechanical datasets, and exportable STL/OBJ 3D models, B2B partners can build a more efficient, scalable, and personalized orthotic production workflow.
From bunion correction supports to high arch orthotics, from custom insoles to personalized footwear components, the future of orthotic manufacturing is data-driven, 3D-enabled, and deeply personalized.
