Xianku 3D – Global foot health statistics paint a concerning picture: one in every two adults suffers from foot-related ailments. Conditions like plantar fasciitis, Achilles tendonitis, heel spurs, and hallux valgus (bunions) are not just painful inconveniences; they are foundational issues impacting posture, mobility, and overall skeletal health. Traditional solutions, particularly generic orthotic insoles, often fall short. Enter cutting-edge 3D printing technology combined with millimeter-precision foot scanner systems, like the Xianku 3D Feet Scanner, creating a new paradigm of personalized foot care and corrective solutions.
The Hidden Dangers: A Triad of Foot Vulnerabilities
The human foot, often called the body's "second heart," is a complex structure bearing immense pressure daily. Problems manifest in three critical zones:
- The Foot Base (Plantar Region): Collapsed arches (flat feet) or excessively high arches disrupt natural shock absorption. This strains the plantar fascia ligament, leading to debilitating plantar fasciitis – characterized by sharp heel pain, especially with the first steps in the morning. Undiagnosed and unsupported, this can cascade into knee, hip, and even spinal misalignment.
- The Heel: Repetitive stress or poor biomechanics can cause calcium deposits forming heel spurs, resulting in chronic inflammation and pain. Achilles tendonitis, an overuse injury of the tendon connecting calf muscles to the heel bone, also stems from improper foot mechanics and inadequate support. Heel inclination angle abnormalities detected by advanced scanners are crucial indicators here.
- The Big Toe (Hallux): Hallux valgus, the painful deviation of the big toe towards the smaller toes (forming a bunion), is often exacerbated by ill-fitting footwear and genetic predisposition. This alters forefoot pressure distribution, causes joint inflammation, and significantly impacts gait stability. Measuring the thumb angle precisely is vital for early intervention.
These issues are far from isolated. They trigger chain reactions – affecting posture, causing joint pain elsewhere, increasing fall risks (especially in the elderly), hindering child development, and reducing quality of life. The global prevalence, affecting 50% of adults and significant portions of children and the elderly, underscores the urgent need for effective, accessible solutions.
The Role and Limitations of Traditional Orthotic Insoles
- Orthotic insoles are designed to correct biomechanical imbalances, redistribute pressure, provide arch support, and stabilize the heel and forefoot. Properly fitted, they can alleviate pain from plantar fasciitis, reduce bunion progression, cushion heel spurs, and improve overall gait.
- However, traditional orthotic insoles face significant limitations:
- "One-Size-Fits-None": Generic or semi-custom insoles rely on basic foot length/width or foam impressions, failing to capture the intricate 3D contours, pressure points, and dynamic alignment needs of an individual's unique foot structure.
- Inaccurate Diagnosis: Without precise, comprehensive data, the root cause of pain or misalignment might be misinterpreted, leading to ineffective or even counterproductive support.
- Time-Consuming & Inefficient: Traditional casting or fitting methods are slow, messy, and uncomfortable. Manufacturing custom insoles traditionally is labor-intensive and slow.
- Poor Compliance: Uncomfortable or ill-fitting insoles often end up unused in drawers.
- Lack of Data: No digital health record or objective metrics to track progress or adjust treatment.
The Paradigm Shift: 3D Printed Custom Orthotic Insoles
3D printing technology has revolutionized the creation of orthotic insoles. Unlike traditional methods, 3D printing enables:
- True Personalization: Insoles are fabricated layer-by-layer based on an exact 3D digital model of the patient's foot, capturing every curve, arch height, pressure zone, and specific deformity.
- Precision Engineering: Material density and structural support can be precisely varied within the same insole – firmer support under the arch and heel, cushioning under the metatarsals, and corrective elements for bunions.
- Optimal Biomechanics: Designed using sophisticated algorithms analyzing scanned data, these insoles correct specific imbalances, optimize pressure distribution, and promote natural, healthy motion.
- Speed & Efficiency: Once the digital design is finalized, 3D printing production is significantly faster than traditional lab methods.
- Lightweight & Durable: Advanced polymers used in 3D printing offer strength, flexibility, and comfort unattainable with older materials.
3D printed orthotic insoles are not just corrective devices; they are data-driven health interventions tailored to the millimeter.
Xianku 3D Foot Scanner: The Engine of Personalized Foot Care
The Xianku Intelligent Co., Ltd.'s Xianku 3D Feet Scanner (Model B002) is the critical first step in this 3D printing revolution for foot health. It provides the essential, high-fidelity data required to design truly effective 3D printed orthotic insoles.
- Millimeter Precision: Utilizing infrared structured light technology (superior to older lasers), the scanner captures over 30 key foot parameters with ±1mm accuracy – far exceeding traditional methods.
- 1:1 Realistic 3D Foot Model: It generates a complete, high-resolution (approx. 2 million point clouds) 3D digital twin of the foot, including the sole, sides, and dorsal surface – crucial for holistic design.
- Comprehensive Metrics: Beyond basic length and width, it measures critical dimensions essential for orthotic insoles design:
-
Blazing Speed: Full 3D scan completed in just 1 second, with a comprehensive digital health report generated in 5 seconds.
- Unmatched Data Capture for 3D Printing:
Foot Base: Foot length, foot width, heel heart length/width, ball girth, waist girth, instep girth.
Height Dimensions: Medial/lateral malleolus height, dorsum height, first metatarsophalangeal joint height.
Arch Dimensions: Medial arch length, medial arch height, arch start/end points.
Angles: Toe angle (critical for hallux valgus assessment), heel inclination angle.
Health Assessments: Flatfoot/high arch index, foot width index, plantar pressure analysis (simulated).

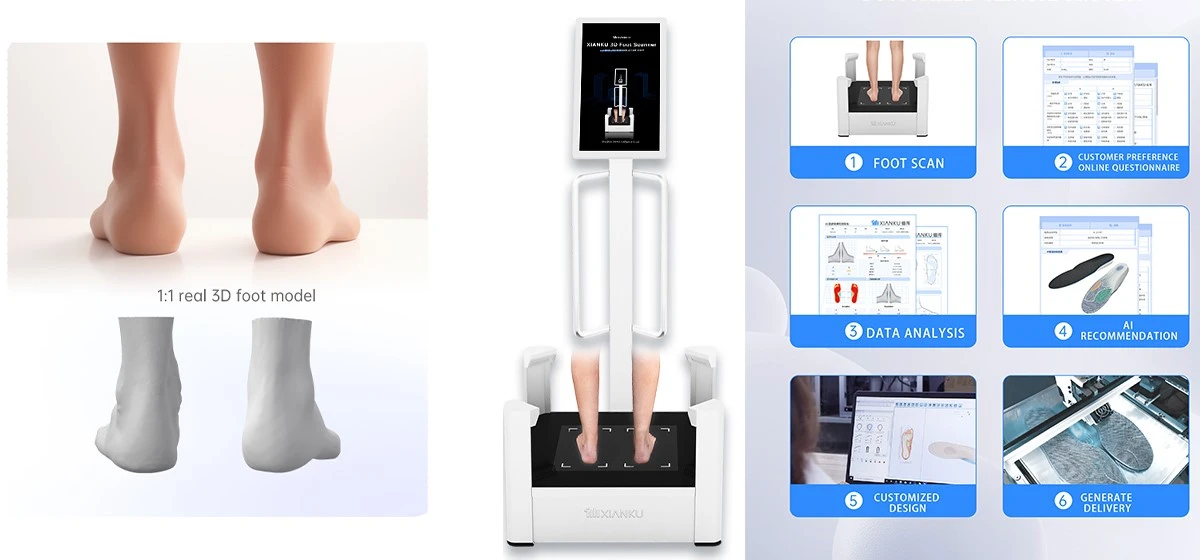

Closing the Loop: From Scan to Delivery with Xianku
The Xianku system isn't just a foot scanner; it's the core of a seamless, closed-loop ecosystem for delivering custom 3D printed orthotic insoles:
- Foot Measurement (1 Second): The customer stands briefly on the scanner. Non-contact infrared structured light captures a complete, precise 3D model and all critical health metrics.
- Foot Health Analysis (Instantaneous): Integrated AI algorithms instantly analyze the scan data. The system diagnoses risks (flat feet, high arches, hallux valgus, varus/valgus heel), assesses pressure distribution patterns, and evaluates overall foot health posture. A detailed "3D Digital Foot Health Report" is generated.
- Foot Data Analytics & 3D Custom Orthotic Insole Recommendation: Based on the deep analysis, the system (often leveraging AIGC intelligent recommendation algorithms) identifies the optimal corrective strategy. It then digitally designs or recommends the precise specifications for a custom 3D printed orthotic insole tailored to the individual's unique anatomy and condition. Customer preferences (e.g., activity level, shoe type) can be integrated via a questionnaire.
- Handoff to Production: The finalized 3D insole design file (based directly on the scanner's millimeter-accurate data and AI recommendations) is securely transmitted to a connected 3D printing system or partner facility. Xianku often provides the supply chain for these customized products.
- 3D Printing & Production: The custom orthotic insole is manufactured using 3D printing technology. This allows for complex geometries and material gradations impossible with traditional methods, precisely matching the digital design derived from the scan.
- Delivery: The finished, personalized 3D printed orthotic insoles are delivered to the customer or the merchant (e.g., shoe store, clinic, gym) for fitting.
This entire process – foot scanner analysis to delivery of custom 3D printed solutions – can be remarkably efficient, often completed within days, thanks to the speed and accuracy of the Xianku system and modern additive manufacturing.
The Compelling Commercial Value
The integration of the Xianku foot scanner with 3D printing for orthotic insoles delivers significant value across diverse sectors:
- Footwear Retailers (Shoe Stores, Sports Brands): Attract customers with cutting-edge tech ("1-second foot health check"). Drive sales of premium custom footwear and insoles. Enhance brand image as innovative and health-conscious. Increase foot traffic and conversion rates through experiential marketing.
- Rehabilitation Institutions & Orthopedic Clinics: Provide objective, data-driven diagnostics. Offer scientifically validated, highly personalized treatment plans. Improve patient outcomes and trust. Streamline the prescription-to-delivery process for orthotic insoles. Create new revenue streams with high-value 3D printed orthotics.
- Sports & Fitness Venues: Optimize athlete performance and prevent injuries through precise biomechanical assessment. Offer value-added services to members (e.g., gait analysis, custom insoles for training/running shoes).
- Podiatrists & Chiropractors: Gain deeper insights into foot-spine postural links. Deliver superior, personalized care with tangible data and custom support solutions.
- Foot Care Centers & Spas: Elevate service offerings beyond basic care. Provide high-tech wellness assessments and premium corrective products (3D printed orthotic insoles).
- Overall Market Transformation: Democratizes access to advanced foot health diagnostics and personalized corrective solutions. Moves away from reactive pain management to proactive, preventative biomechanical correction. Leverages 3D printing for on-demand, local manufacturing potential.
Xianku: Powering the Future of Foot Health Data
As a global leader in "3D Precise Physical Sign Data Operation Services," Xianku Intelligent leverages its proprietary scanning hardware, patented algorithms (including AI spine and AIGC recommendation engines), and the world's largest 3D human body database (over 5 million data points). The Xianku 3D Feet Scanner B002 exemplifies this leadership, providing the indispensable data foundation that makes effective, personalized 3D printed orthotic insoles a reality. By closing the loop from instant, precise measurement through AI-driven analysis to the production of tailored corrective devices via 3D printing, Xianku is not just selling a foot scanner; it's enabling a transformative ecosystem for proactive foot health management worldwide. The future of orthotics is personalized, data-driven, and printed in 3D.
