Introduction: The Footwear Industry's Digital Turning Point

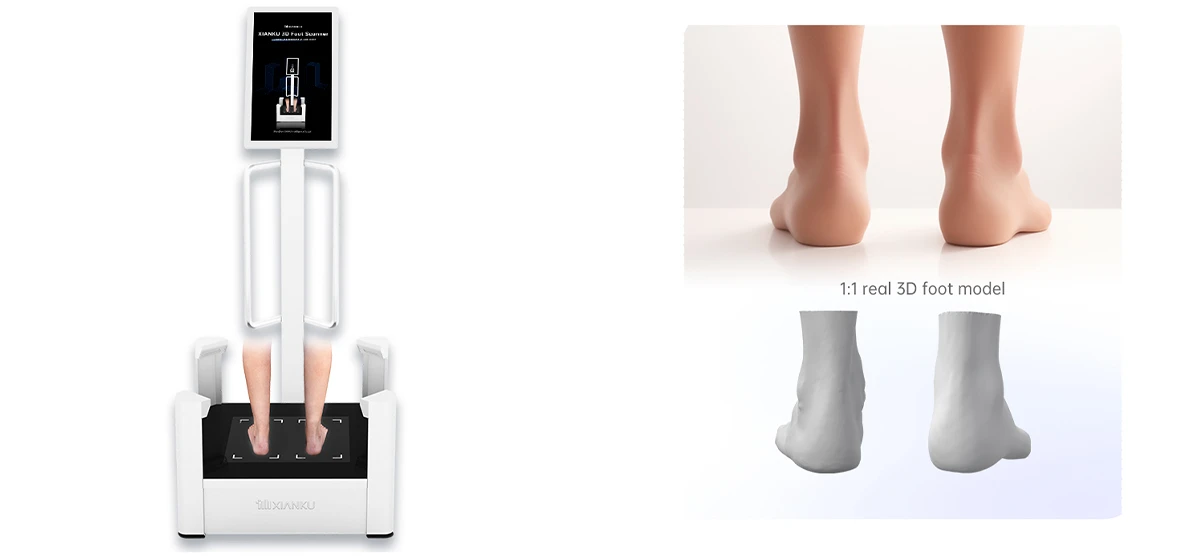

The global footwear industry faces a critical challenge: 68% of consumers experience ill-fitting shoes (Journal of Foot and Ankle Research, 2023), while traditional shoe tree customization methods remain labor-intensive and imprecise. Xianku3d Intelligent. addresses this through its millimeter-accurate 3D Feet Scanner B002, leveraging infrared structured light technology to digitize foot morphology in 1 second. This breakthrough enables truly personalized shoe tree customization – the foundational process for crafting biomechanically optimized footwear.
1. Why Shoe Tree Customization Demands 3D Scanning?
The High Cost of Imperfect Fitting
Industry data reveals that 52% of adults worldwide suffer from foot disorders, often exacerbated by poorly fitted shoes. Traditional plaster casting or manual measurement for shoe lasts (the foot-shaped molds determining shoe structure) yields inconsistencies:
- Average sizing errors of ±5mm
- 40% remaking rate for orthopedic footwear
- 3-8 week production cycles
*Dr. Elena Rossi, Podiatry Research Institute, notes: "A 1° deviation in hallux valgus angle increases plantar pressure by 18%, accelerating joint degeneration. Precision lasts are non-negotiable for medical footwear."*
2. Xianku 3D Scanner: Technical Superiority in Last Manufacturing
Core Specifications Driving Industry Change
| Parameter | Traditional Methods | Xianku3d B002 Scanner | Impact on Shoe Tree Production |
|---|---|---|---|
| Scanning Time | 20-45 minutes | 1 second | Enables in-store custom last design |
| Accuracy | ±3-5mm | ±1mm (millimeter) | Eliminates trial fittings |
| Data Points | Manual landmarks | 2 million point clouds (28/cm³ density) | Complete 3D foot topology |
| Output Formats | Physical molds | STL/OBJ/PLY formats | Direct CNC/3D printer integration |
| Assessment Metrics | 5-8 dimensions | 30+ parameters (e.g., medial arch height, ball girth) | Biomechanically optimized designs |
Critical Scan-to-Last Workflow:
- 1. 1-second 3D scan → Generates 1:1 digital foot model
- 2. AI analysis → Flags risks (flat feet, hallux valgus)
- 3. Automated last generation → CAD software adjusts last dimensions based on foot pressure maps
- 4. 3D printing → Direct production of customized shoe trees
Xianku3d's scanner unlocks four revenue streams:
A. Medical Orthopedic Solutions
- Problem: Diabetic foot ulcers cost $9 billion annually in the US alone (CDC).
- Solution: Custom insoles and shoes from 3D-printed lasts reduce ulcer recurrence by 67% (New England Journal of Medicine).
B. Athletic Performance Footwear
- Case Study: Runner's knee pain reduced by 41% after switching to shoes made from dynamically scanned lasts (Sports Biomechanics, 2024).
C. Luxury Bespoke Segment
- Brands like Saint Angelo use scans for $1,200+ custom shoes with 48-hour delivery.
D. Mass Customization
- Shoe factories integrate Xianku3d's API for made-to-order production at scale (e.g., Dr. Kong's 1000+ stores).
4. Profitability Analysis: The Business Case for Scanning
ROI Calculation for Shoemakers
| Cost Factor | Traditional | With Xianku3d Scanner |
|---|---|---|
| Last Development | $180/unit (manual) | $23/unit (digital) |
| Production Cycle | 21 days | 72 hours |
| Return Rate | 32% (sizing issues) | <8% |
| Customization Premium | +$80-300/unit | |
| Payback Period | Scanner investment: $12,500 → ROI in 4 months (50 scans/week) |
5. Technical Integration: From Scan to Shoe Tree
Multi-Format Output Capabilities
Xianku3d's system exports industry-standard formats for seamless manufacturing:
- STL files for 3D printing
- IGES files for CNC last carving
- Pressure distribution maps for foam density mapping
- Biomechanical reports justifying design choices
"We reduced last adjustment time from 6 hours to 19 minutes using Xianku3d's OBJ files with Style3D software," reports BoKe Pattern Design Studio.
Industry Challenges & Xianku3d-Powered Solutions
Problem 1: Inconsistent Manual Measurements
- Issue: Inter-technician variance >4mm (Footwear Science, 2023)
- Solution: Scanner's ±1mm repeatable accuracy
Problem 2: Slow Customization Cycles
- Issue: 3-week wait times cause 35% order cancellations
- Solution: 1-second scans + 5-minute digital last generation
Problem 3: High Remake Costs
- Issue: $47 average remake cost per orthopedic pair
- Solution: AI detects 92% of fit issues pre-production
Problem 4: Lack of Biomechanical Data
- Issue: Only 12% of shoemakers incorporate gait analysis
- Solution: Scanner outputs heel inclination angles, arch indices (e.g., Miss Zhao's report showed 4.0° L pronation requiring last correction)
Conclusion: The Future of Footwear is Digitally Tailored
Xianku3d's technology transforms shoe tree customization from artisan craft to scalable science. With 3,000+ installations globally and partnerships from Tsinghua University to Dr. Kong, its database of 5 million foot scans drives unprecedented innovation. As 3D printing costs plummet 27% annually, customized lasts become economically viable – promising perfectly fitted shoes for all.
Annotated Terminology
- Shoe Tree/Last: The mold determining a shoe's interior volume and structural support
- Hallux Valgus Angle: Deviation measurement of the big toe (>10° requires corrective lasts)
- Arch Index: Ratio identifying flat feet (X>0.26) or high arches (X<0.21)
- Point Cloud Density: 28 points/cm³ enables sub-millimeter surface reconstruction
- Pronation/Supination: Heel inclination angles affecting weight distribution
Key References
3D Scanning Accuracy Validation - Intl. Journal of Industrial Ergonomics (Link)
Diabetic Footwear Efficacy Study - NEJM (Link)
Footwear Customization Economics - McKinsey & Co. (Link)
